Dependencies to attributes and nested objects of connected items

Dependencies to connected item attributes

In the case of a Connected item that has several attributes, instead of creating a Connected item that depends on the Connected item display template like explained above, you can decide to create a Connected item that depends on one or more of the Connected item attributes.

(warning) You can only configure dependencies to attributes of Select list Connected items for now.

Let's say you want to create two Connected items for the following:

  • Issue picker - to list all the issues of a specific project
  • Issue status - to display the status based on the key of the issue selected in the "Issue picker" Connected item

Let's take a look at how these Connected items would be configured.

This example uses Jira REST API as a datasource. Refer to this tutorial for details on how to configure it.



Issue picker

Let's create a Connected item that fetches issues from a specific project, "ITSM project" in this case.

Type: Select list

Query:

CODE
https://yoursite.atlassian.net/rest/api/search?jql=project="ITSM project"

Location of options in the response: issues

Template:

CODE
<img src="${row.fields.issuetype.iconUrl}" height=16 style="vertical-align:sub;"/> <a href="https://jira.atlassian.com/browse/${row.key}" target="_blank">${row.key}</a> - ${row.fields.summary}

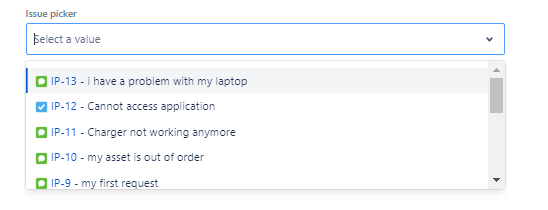

The query is executed and returns the key and summary of all issues in the "ITSM project" project.


Issue status

Now we want to configure a read-only connected item that displays the status based on the key of the issue selected in the "Issue picker" connected item ($issue.connected_item_10001).

Type: Read-only

Query:

Issue status - Query

CODE
https://yoursite.atlassian.net/rest/api/issue/$issue.connected_item_10001.key


Template:

Issue status - Template

CODE
${data.fields.status.name}

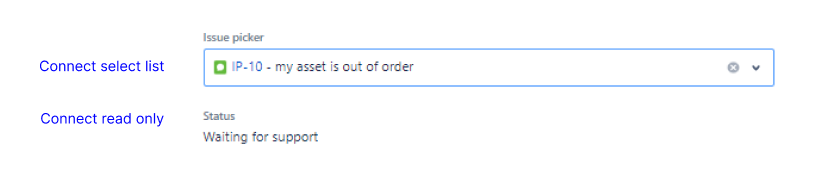

The query is executed and returns the status of the issue selected in the "Issue picker" connected item.


Dependencies to connected item nested objects

If you have a connected item that consists of nested objects, you can create connected items that depend on these nested objects and their underlying attributes.

Let's say you want to create two connected items for the following:

  • Issue picker - to list all the issues of a specific project
  • Similar issues - to list issues with the same issue type and status as the issue selected in the "Issue picker" connected item

Let's take a look at how these connected items would be configured.

Note: this example uses Jira REST API as a datasource.


Issue picker

Let's create a connected item that fetches issues from a specific project, "ITSM project" in this case.

Type: Select list

Query:

Issue picker - Query

CODE
https://yoursite.atlassian.net/rest/api/search?jql=project="ITSM project"


Location of options in the response: issues

Template:

Issue picker - Template

CODE
<img src="${row.fields.issuetype.iconUrl}" height=16 style="vertical-align:sub;"/> <a href="https://jira.atlassian.com/browse/${row.key}" target="_blank">${row.key}</a> - ${row.fields.summary}



The query is executed and returns the key and summary of all issues in the "ITSM project" project.


Similar issues

Now, let's create a connected item that fetches issues that have the same issue type and the same status as the issue selected in the above "Issue picker" connected item (($issue.connected_item_10001).

Before we go into the configuration, let's give some context.

A Jira issue is an object that consists of an array of attributes in the form of key-value pairs:

  • "expand": <value>
  • "id": <value>
  • "self": <value>
  • "key": <value>
  • "fields": <value>

The information about the issue type and the status of the issue are contained under the "fields" attribute.

The "fields" attribute is itself an object which is comprised of various attributes, among which "issueType" and "status".

issueType and status also are objects that are described by attributes in the form of the following key-value pairs:

issueTypestatus
  • "self": <value>
  • "id": <value>
  • "description": <value>
  • "iconUrl": <value>
  • "name": <value>
  • "subtask": <value>
  • "avatarId": <value>
  • "hierarchyLevel": <value>
  • "self":  <value>
  • "description": <value>
  • "iconUrl": <value>
  • "name": <value>
  • "id": <value>
  • "statusCategory": { array of attributes}

In order to fetch issues that have the same issue type and the same status as the issue selected, we need to reference the access path all the way to the attribute "name" of the issueType object and the attribute "name" of the status object in the query.

Let's see what the configuration looks like:


Type: Select list

Query:

Issue type and status - query

CODE
/search?jql=project="ITSM project" AND issuetype = "$issue.connected_item_10001.fields.issuetype.name" AND status= "$issue.connected_item_10001.fields.status.name"


Location of options in the response: issues

Template:

Issue type and status - Template

CODE
<img src="${row.fields.issuetype.iconUrl}" height=16 style="vertical-align:sub;"/> <a href="https://jira.atlassian.com/browse/${row.key}" target="_blank">${row.key}</a> - ${row.fields.summary}

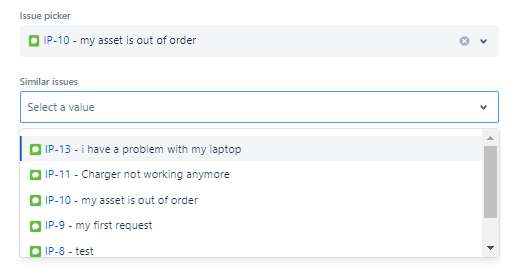

The query is executed and returns the key and summary of all the issues with the same issue type and status as the issue selected in the "Issue picker" connected item.
