How to configure Bitbucket as a datasource

This guide provides step-by-step instructions to configure Bitbucket Cloud as a datasource in Elements Connect for Jira Cloud. This integration gives you access to Bitbucket repository data (files, branches, commits, pull requests…) within your Jira work items.

Prerequisites

• A Bitbucket Cloud account with access to the target workspace and repository.

• Elements Connect must be installed on your Jira instance.

Configuration steps

Generate an API token

• Go to your Atlassian account → Security → API tokens

• Click Create API token with scopes and select the following scopes:

  • read:repository:bitbucket

  • read:user:bitbucket

• Copy the token and keep it for the next step

Elements Connect configuration

Datasource configuration

• Go to the Elements Connect administration menu

• Go to the Data sources tab

• Create a new REST API datasource and configure it as follows:

  • API Base URL:

    https://api.bitbucket.org/2.0/


  • API Test URL:

    https://api.bitbucket.org/2.0/user


• Authentication:

  • Mode: API Key (Send in Request Header)

  • Header name:

    Authorization


  • API KEY:

    Bearer <YOUR_TOKEN>


    Replace <YOUR_TOKEN> with the Token retrieved above.

• Then, click "Save" and "Test Connection":



Field configuration

Identify the endpoint to use:

• All Bitbucket Cloud REST API (v2.0) calls share this root:

  https://api.bitbucket.org/2.0/


• A path is appended to it, for example to read a file:

  repositories/WORKSPACE/REPO_SLUG/src/BRANCH/PATH_TO_FILE


  You will need to identify the WORKSPACE, REPO_SLUG, BRANCH and PATH_TO_FILE

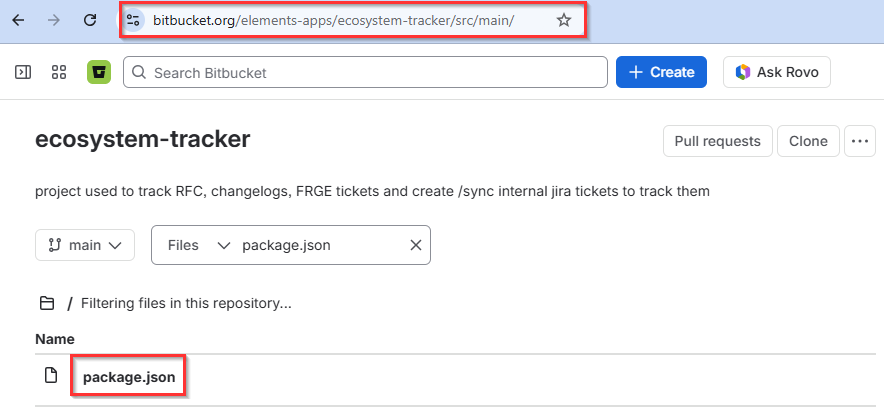

• In Bitbucket, locate the repository where the file you want to fetch is stored:



• In this case, the URL is https://bitbucket.org/elements-apps/ecosystem-tracker/src/main/ and the file to fetch is package.json

• Therefore, the corresponding path is:

  https://api.bitbucket.org/2.0/repositories/elements-apps/ecosystem-tracker/src/main/package.json


Configure the Connected field:

• Go to the Elements Connect administration menu

• Go to the Connected fields tab:

• Create a Custom field and configure the query tab as follows:

  • Data source: the REST API data source created above

  • Method: GET

  • Path:

    repositories/elements-apps/ecosystem-tracker/src/main/package.json


• Run a test and check that the results are displayed in the Full API Response tab:
