Use Jira Assets as datasource

This guide explains how to configure an Elements Connect field to retrieve Jira Service Management Assets objects by using the Assets REST API.

What you will configure: a URL datasource in Elements Connect, a field query against the Assets API, JSON parsing for the response, and an autocomplete field for selecting Assets objects.

Prerequisites

Before you start, make sure the following requirements are met:

Jira Service Management Assets is available on your Jira Data Center instance
Elements Connect is installed
You have Jira administrator permissions
You have an Assets object type to query

Create the URL datasource

In Jira administration, go to Apps → Elements Connect → Datasources.

Create a new datasource and select URL.

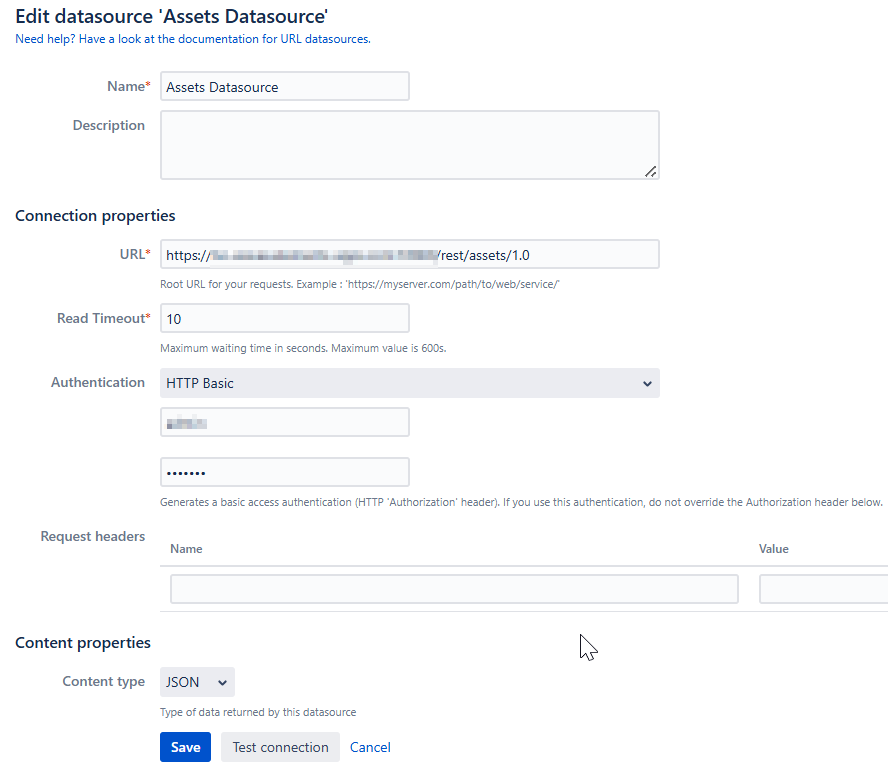

Datasource settings

Datasource name

CODE

Jira Assets

URL

Enter the root URL of the Assets REST API:

CODE

https://jira.example.com/rest/assets/1.0

If Jira uses a context path, include it:

CODE

https://jira.example.com/jira/rest/assets/1.0

Do not add the endpoint path in the datasource URL. The endpoint path must be configured later in the field query.

Example

CODE

Datasource URL: https://jira.example.com/rest/assets/1.0
Field query: objectschema/list
Final URL: https://jira.example.com/rest/assets/1.0/objectschema/list

Authentication

CODE

HTTP Basic

Enter the username and password of a Jira admin that can browse the Assets data.

Content type

CODE

JSON

Save the datasource.

Create the Elements Connect field

Go to Elements Connect administration → Fields.

Create a new Elements Connect field.

For a simple Assets object picker, use one of the following field types:

Snapshot Text, if you want to store the displayed value in the issue
Live Text, if you want the field to retrieve the latest Assets value when the issue is displayed

Select the URL datasource created in the previous step.

Configure the field query

This example displays objects from the Device object type.

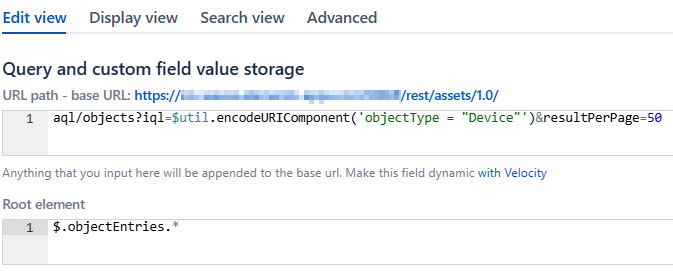

In the field configuration, use this query:

CODE

aql/objects?iql=$util.encodeURIComponent('objectType = "Device"')&resultPerPage=50

The corresponding AQL query is:

CODE

objectType = "Device"

The $util.encodeURIComponent() function makes the AQL query readable in the configuration while encoding it correctly for the URL parameter.

Configure the JSON response

The Assets AQL endpoint returns objects in the objectEntries array.

Set the root element to:

CODE

$.objectEntries.*

Configure the following columns:

Column name	JSON path
`id`	`$.id`
`objectKey`	`$.objectKey`
`label`	`$.label`
`objectType`	`$.objectType.name`

Configure the editor

For Assets object selection, use the Autocomplete editor.

Recommended settings:

Setting	Value
Editor	Autocomplete
Selection mode	Single value
Min characters	2
Max suggestions	20

For large object types, filter results with what the user types.

Example query

CODE

aql/objects?iql=$util.encodeURIComponent("objectType = \"Device\" AND Name LIKE \"$userInput\"")&resultPerPage=20

This searches for Device objects whose Name matches the user input.

For large Assets object types, combine Autocomplete, $userInput, and resultPerPage to avoid loading too many objects at once.

Configure the display template

Use the columns configured earlier in the field template.

Example

CODE

{label} - {objectKey}

Displayed result

CODE

MacBook Pro - ITSM-123

For Live Text fields, configure the key with the id column.

Recommended key

CODE

This stores the value from the first column, id.

Test the field

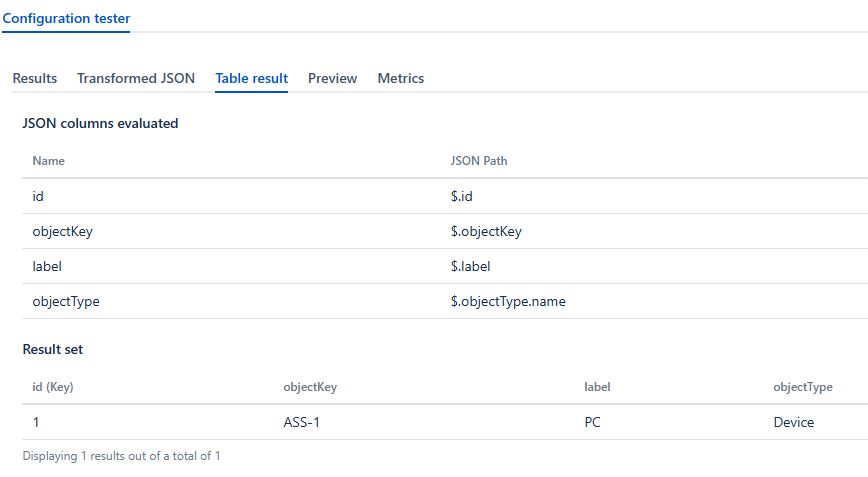

Use the Configuration Tester before publishing the field.

Check the following:

The final URL
The HTTP response
The transformed JSON
The table result
The preview
The execution time

If the field returns no result, check that:

The Jira user configured in the datasource can browse the Assets data
The AQL query returns objects in Assets
The AQL query is URL-encoded
The root element is correct
The column JSON paths are correct

Notes

Elements Connect URL datasources use GET requests.

Use Assets REST API endpoints that support GET requests, such as:

CODE

/rest/assets/1.0/aql/objects
